SiC MOSFET

SiC MOSFET

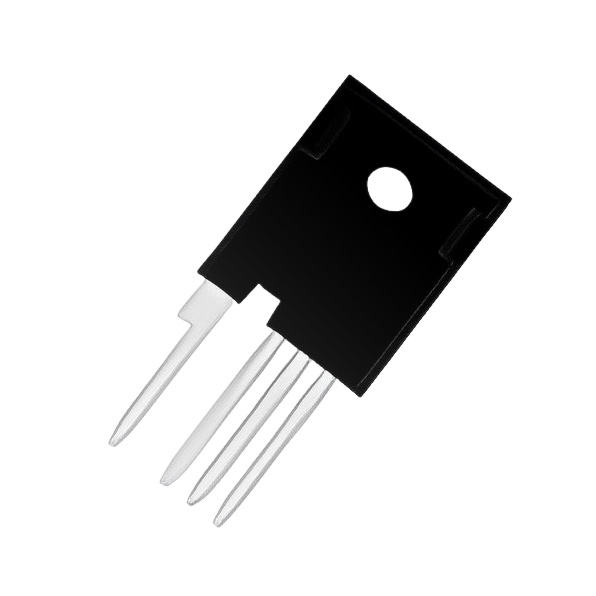

SiC MOSFET has the characteristics of high voltage, low on resistance, high speed, small parasitic capacitance, high operating junction temperature, fast recovery diode, and Kelvin connection drive.

Application Form
Scheme Design
  • 1200V
  • 750V
  • 1500V
  • 1700V
  • 1800V
  • 2300V
  • 8.4mΩ
  • 12mΩ
  • 25mΩ
  • 38mΩ
  • 13mΩ
  • 21mΩ
  • 23mΩ
  • 35mΩ
  • 15mΩ
  • 37mΩ
  • 20mΩ
  • 40mΩ
  • 1200mΩ
  • 60mΩ
  • 18mΩ
  • 26mΩ
  • 33mΩ
  • 970mΩ
  • 470mΩ
  • 24mΩ
  • 7mΩ
  • 14mΩ
  • 32mΩ
  • 75mΩ
  • 160mΩ
  • 218A
  • 173A
  • 92A
  • 64A
  • 70A
  • 155A
  • 112A
  • 97A
  • 107A
  • 65A
  • 75A
  • 144A
  • 72A
  • 110A
  • 66A
  • 0.52A
  • 98A
  • 102A
  • 44A
  • 45A
  • 51A
  • 121A
  • 85A
  • 90A
  • 4.7A
  • 179A
  • 101A
  • 125A
  • 127A
  • 71A
  • 8A
  • 5A
  • 253A
  • 152A
  • 87A
  • 76A
  • 73A
  • 39A
  • 20A
  • 21A
  • 41A
  • Industrial
  • Automotive
Product SKU Data Sheet Blocking Voltage Rds_on at 25℃ Current Rating Vgs_op Tj(max) Package Generation Qualification Status
S3M008120HK 1200V 8.4mΩ 218A +18V 175℃ TO-247-4L G3 Industrial Sample
SG2M012075HJ 750V 12mΩ 173A +18V 175℃ TO-247-4L-A G2 Industrial Sample
SG2M025075LJ 750V 25mΩ 92A +18V 175℃ TO-247-4L-C G2 Industrial Active
SG2M040075LJ 750V 38mΩ 64A +18V 175℃ TO-247-4L-C G2 Industrial Active
SG2M040075JJ 750V 38mΩ 70A +18V 175℃ TO-263-7L-A G2 Industrial Active
SG2M014120LJ 1200V 13mΩ 155A +18V 175℃ TO-247-4L-C G2 Industrial Active
SG2M021120LH 1200V 21mΩ 112A +15V 175℃ TO-247-4L-C G2 Industrial Active
SG2M023120LJ 1200V 23mΩ 97A +18V 175℃ TO-247-4L-C G2 Industrial Sample
SG2M023120J1J 1200V 23mΩ 107A +18V 175℃ TO-263-7L-B G2 Industrial Sample
SG2M040120HJ 1200V 35mΩ 65A +18V 175℃ TO-247-4L-A G2 Industrial Active
SG2M040120LJ 1200V 35mΩ 65A +18V 175℃ TO-247-4L-C G2 Industrial Active
SG2M040120JJ 1200V 35mΩ 75A +18V 175℃ TO-263-7L-A G2 Industrial Active
SG2M015150HK 1500V 15mΩ 144A +18V 175℃ TO-247-4L-A G2 Industrial Sample
S2M040150HJ 1500V 37mΩ 72A +18V 175℃ TO-247-4L-A G2 Industrial Active
SG2M020170HJ 1700V 20mΩ 110A +18V 175℃ TO-247-4L-A G2 Industrial Active
SG2M040170HJ 1700V 40mΩ 66A +18V 175℃ TO-247-4L-A G2 Industrial Active
S2M12K180KJ 1800V 1200mΩ 0.52A +18V 175℃ TO-3PF-3L G2 Industrial Sample
SG2M025075LJ-A 750V 25mΩ 92A +18V 175℃ TO-247-4L-C G2 Automotive Active
SG2M025075JJ 750V 25mΩ 98A +18V 175℃ TO-263-7L-A G2 Industrial Active
SG2M025075MJ 750V 25mΩ 102A +18V 175℃ TOLL G2 Industrial Sample
SG2M040075LJ-A 750V 38mΩ 64A +18V 175℃ TO-247-4L-C G2 Automotive Active
SG2M040075MJ 750V 38mΩ 64A +18V 175℃ TOLL G2 Industrial Sample
SG2M060075LJ-A 750V 60mΩ 44A +18V 175℃ TO-247-4L-C G2 Automotive Active
SG2M060075JJ 750V 60mΩ 45A +18V 175℃ TO-263-7L-A G2 Industrial Active
SG2M060075MJ 750V 60mΩ 51A +18V 175℃ TOLL G2 Industrial Sample
SG2M018120LJ 1200V 18mΩ 121A +18V 175℃ TO-247-4L-C G2 Industrial Sample
SG2M023120UJ 1200V 23mΩ 97A +18V 175℃ TO-247-4L-D G2 Industrial Sample
SG2M027120LJ 1200V 26mΩ 85A +18V 175℃ TO-247-4L-C G2 Industrial Active
SG2M027120JJ 1200V 26mΩ 90A +18V 175℃ TO-263-7L-A G2 Industrial Active
SG2M035120HJ 1200V 33mΩ 66A +18V 175℃ TO-247-4L-A G2 Industrial Active
SG2M035120LJ 1200V 33mΩ 66A +18V 175℃ TO-247-4L-C G2 Industrial Active
SG2M035120UJ 1200V 33mΩ 66A +18V 175℃ TO-247-4L-D G2 Industrial Sample
SG2M1K0170DJ 1700V 970mΩ 4.7A +15~18V 175℃ TO-247-3L G2 Industrial Active
SG2M012075LJ 750V 12mΩ 173A +18V 175℃ TO-247-4L-C G2 Industrial Sample
SG2M012075WJ 750V 12mΩ 179A +18V 175℃ QDPAK G2 Industrial Sample
SG2M025075JJ 750V 25mΩ 98A +18V 175℃ TO-263-7L-A G2 Industrial Active
SG2M025075TJ-A 750V 25mΩ 101A +18V 175℃ TSPAK G2 Automotive Sample
SG2M025075WJ-A 750V 25mΩ 101A +18V 175℃ QDPAK G2 Automotive Sample
SG2M040075WJ-A 750V 38mΩ 72A +18V 175℃ QDPAK G2 Automotive Sample
SG2M060075LJ 750V 60mΩ 44A +18V 175℃ TO-247-4L-C G2 Industrial Active
SG2M018120J1J 1200V 18mΩ 125A +18V 175℃ TO-263-7L-B G2 Industrial Sample
SG2M018120WJ 1200V 18mΩ 127A +18V 175℃ QDPAK G2 Industrial Sample
SG2M035120JJ 1200V 33mΩ 71A +18V 175℃ TO-263-7L-A G2 Industrial Active
SG2M035120LF 1200V 33mΩ 66A +18V 175℃ TO-247-4L-C G2 Industrial Sample
SG2M500120JH 1200V 470mΩ 8A +15V 175℃ TO-263-7L-A G2 Industrial Active
S2M025150HJ 1500V 25mΩ 98A +18V 175℃ TO-247-4L-A G2 Industrial Sample
SG2M1K0170J2J 1700V 970mΩ 5A +15~18V 175℃ TO-263-7L-C G2 Industrial Sample
S2M024230QJ 2300V 24mΩ 90A +18V 175℃ TO-247plus-4L G1 Industrial Sample
S1M007120PD 1200V 7mΩ 253A +18V 175℃ TO-247plus-4L G1 Automotive Active
S1M014120H 1200V 14mΩ 152A +18V 175℃ TO-247-4L-A G1 Automotive Active
S1M032120H 1200V 32mΩ 87A +15~18V 175℃ TO-247-4L-A G1 Automotive Active
S1M040120H 1200V 40mΩ 76A +15~18V 175℃ TO-247-4L-A G1 Automotive Active
S1M040120L 1200V 40mΩ 76A +15~18V 175℃ TO-247-4L-C G1 Automotive Active
S1M040120D 1200V 40mΩ 73A +15~18V 175℃ TO-247-3L G1 Automotive Active
S1M075120H2 1200V 75mΩ 44A +15~18V 175℃ TO-247-4L-A G1 Automotive Active
S1M075120J2 1200V 75mΩ 39A +15~18V 175℃ TO-263-7L-A G1 Automotive Active
S1M075120D2 1200V 75mΩ 44A +15~18V 175℃ TO-247-3L G1 Automotive Active
SG1M160120L 1200V 160mΩ 20A +15V 175℃ TO-247-4L-C G1 Industrial Active
SG1M160120J 1200V 160mΩ 21A +15V 175℃ TO-263-7L-A G1 Automotive Active
SG1M160120D 1200V 160mΩ 20A +15V 175℃ TO-247-3L G1 Industrial Active
S1M040120T-A 1200V 40mΩ 73A +15~18V 175℃ TSPAK G1 Automotive Sample
S1M075120T2-A 1200V 75mΩ 41A +15~18V 175℃ TSPAK G1 Automotive Sample
