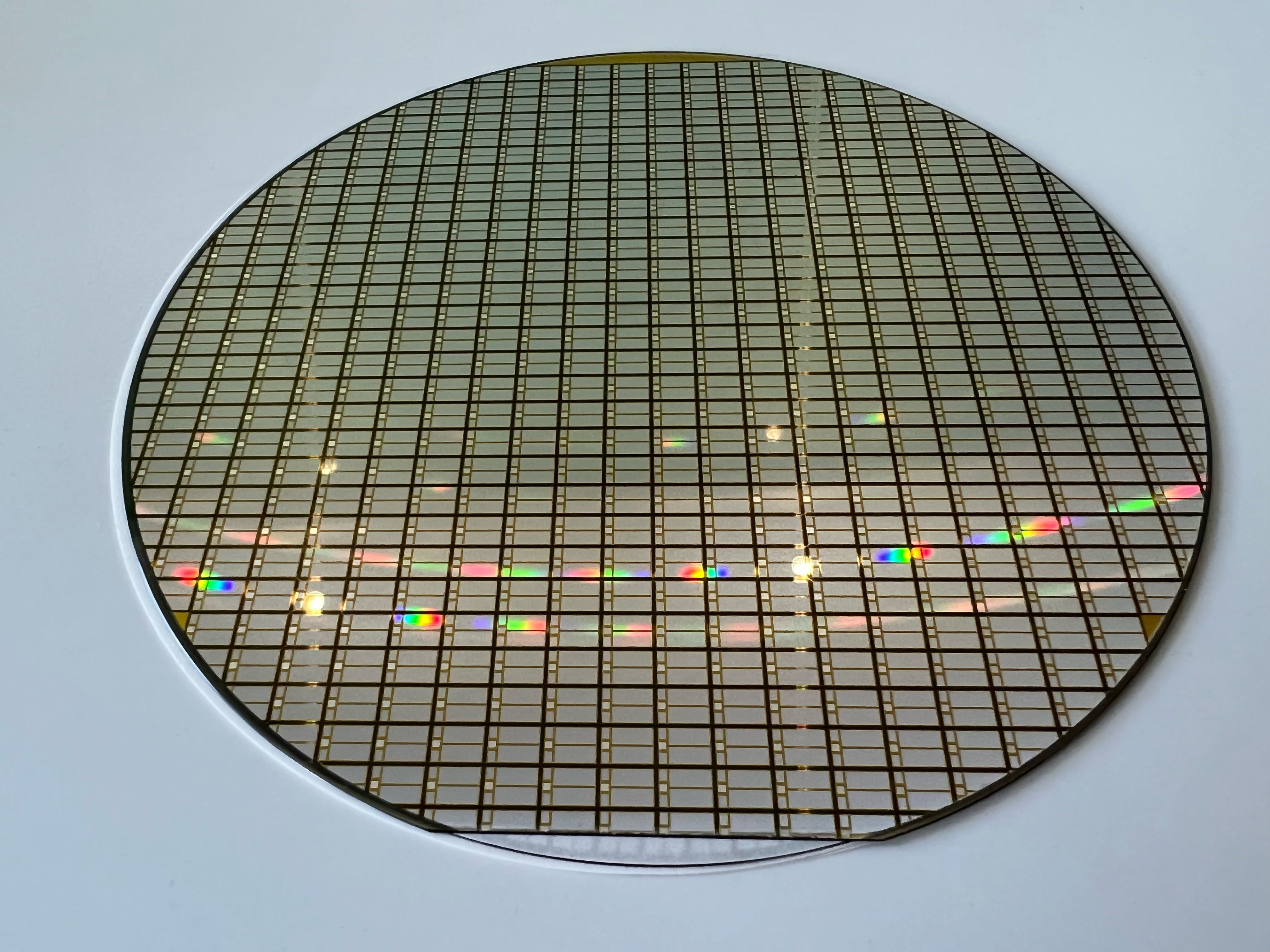

SiC MOSFET-Bare Die

SiC MOSFET-Bare Die

Integrated with advanced self-developed SiC MOSFET and SBD, more in line with customer needs

Application Form
Scheme Design
  • 1200V
  • 750V
  • 1500V
  • 1700V
  • 1800V
  • 2300V
  • 8.4mΩ
  • 12mΩ
  • 25mΩ
  • 38mΩ
  • 13mΩ
  • 14mΩ
  • 16mΩ
  • 23mΩ
  • 15mΩ
  • 37mΩ
  • 20mΩ
  • 12000mΩ
  • 32mΩ
  • 40mΩ
  • 60mΩ
  • 18mΩ
  • 26mΩ
  • 33mΩ
  • 35mΩ
  • 500mΩ
  • 970mΩ
  • 24mΩ
  • 75mΩ
  • 160mΩ
  • 218A
  • 160A
  • 92A
  • 64A
  • 155A
  • 127A
  • 97A
  • 144A
  • 72A
  • 110A
  • 0.52A
  • 152A
  • 87A
  • 76A
  • 44A
  • 121A
  • 85A
  • 66A
  • 65A
  • 8A
  • 4.7A
  • 131A
  • 112A
  • 98A
  • 90A
  • 20A
  • Industrial
  • Automotive
Product SKU DataSheet Blocking Voltage Rds_on at 25℃ Current Rating Vgs_op Tjmax Generation Qualification Status
S3M008120BK 1200V 8.4mΩ 218A +18V 175℃ G3 Industrial Sample
S3M008120NK 1200V 8.4mΩ 218A +18V 175℃ G3 Industrial Sample
SG2M012075BJ 750V 12mΩ 160A +18V 175℃ G2 Industrial Sample
SG2M025075BJ 750V 25mΩ 92A +18V 175℃ G2 Industrial Active
SG2M040075BJ 750V 38mΩ 64A +18V 175℃ G2 Industrial Active
SG2M014120BJ 1200V 13mΩ 155A +18V 175℃ G2 Industrial Sample
SG2M014120NK 1200V 14mΩ 155A +18V 175℃ G2 Industrial Sample
SG2M016120B 1200V 16mΩ 127A +18V 175℃ G2 Industrial Sample
SG2M023120BJ 1200V 23mΩ 97A +18V 175℃ G2 Industrial Active
SG2M015150BK 1500V 15mΩ 144A +18V 175℃ G2 Industrial Sample
S2M040150BJ 1500V 37mΩ 72A +18V 175℃ G2 Industrial Active
SG2M020170BJ 1700V 20mΩ 110A +18V 175℃ G2 Industrial Active
S2M12K180BJ 1800V 12000mΩ 0.52A +18V 175℃ G2 Industrial Active
S1M014120B 1200V 14mΩ 152A +18V 175℃ G1 Automotive Active
S1M014120BP 1200V 14mΩ 152A +18V 175℃ G1 Automotive Sample
S1M032120B 1200V 32mΩ 87A +15~18V 175℃ G1 Automotive Active
S1M040120B 1200V 40mΩ 76A +15~18V 175℃ G1 Automotive Active
SG2M060075BJ 750V 60mΩ 44A +18V 175℃ G2 Industrial Active
SG2M018120BJ 1200V 18mΩ 121A +18V 175℃ G2 Industrial Sample
SG2M027120BJ 1200V 26mΩ 85A +18V 175℃ G2 Industrial Active
SG2M035120BJ 1200V 33mΩ 66A +18V 175℃ G2 Industrial Active
SG2M040120B 1200V 35mΩ 65A +18V 175℃ G2 Industrial Active
SG2M500120BH 1200V 500mΩ 8A +15V 175℃ G2 Industrial Active
SG2M040170BJ 1700V 40mΩ 66A +18V 175℃ G2 Industrial Active
SG2M1K0170BJ 1700V 970mΩ 4.7A +15~18V 175℃ G2 Industrial Active
SG2M017120BK 1200V 16mΩ 131A +18V 175℃ G2 Industrial Sample
SG2M021120B 1200V 20mΩ 112A +15V 175℃ G2 Industrial Active
S2M025150BJ 1500V 25mΩ 98A +18V 175℃ G2 Industrial Sample
SG2M020170BK 1700V 20mΩ 110A +18V 175℃ G2 Industrial Active
S2M024230BJ 2300V 24mΩ 90A +18V 175℃ G2 Industrial Sample
S1M075120B2 1200V 75mΩ 44A +15~18V 175℃ G1 Automotive Active
SG1M160120B 1200V 160mΩ 20A +15V 175℃ G1 Automotive Active
